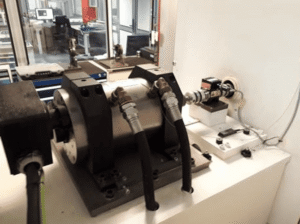

Bearing Test Systems
We design bearing test systems for durability, high-speed, and performance validation. A bearing test system simulates real-world operating conditions to measure the durability and performance of bearings under various speeds, loads, temperatures, and vibration levels. Key Features
- Real-Time Data Analysis: Monitors temperature, vibration, speed, and load in real time.
- High Precision: Detects micro-level wear and early-stage defects.
- User-Friendly Interface: Features a touchscreen control panel and easy-to-use reporting software.
- Rugged Mechanical Construction: Fully capable of withstanding intense and prolonged testing conditions.
- Wide Compatibility: Works with industrial bearings of various diameters and types.
TECHNICAL OVERVIEW
Updating...
| Test Operating Conditions | Units | Specification |
|---|---|---|
| Test Speed | r/min | Up to 60,000 and (more, upon customer request) |
| Loads | N | Axial, radial, and other, upon customer request |
| Temperature | °C | -200… +500 (more, upon customer request) |
| Lubrication | L/min, MPa, °C | Oil, fuel, or other, upon customer request |
| Vibration | gE, mm/s, μ m | Acceleration, Velocity, Displacement |
| Test Duration | h | Upon customer request |
| Number of Cycles | - | Upon customer request |
